Overview

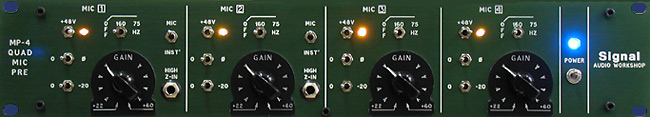

Here’s our solid-state Mic pre-amp. Although tubes
and transformers will often complement digital sound, they
should not be the only color on your paint-box!
Using a transparent Mic pre-amp followed by a “colored”
component will leave only the latter’s impact on the
sound. Since “colored” compressors are widely
used, there was a need for a transparent Mic pre-amp. Even
when recording more dynamic material, some engineers route
their signal through compressors with no gain reduction,
just for the “color”.
An accurate, transparent, solid-state Mic pre-amp doesn’t
have to sound “cold”, if it’s well designed.
As with our other products, this unit performs extremely
well in the ultrasonic range we find crucial for a rich,
detailed and focused sound image. As a matter of fact, it’s
almost flat up to 120Khz.
With a clear mid-range, fast rise time and “tons”
of headroom, the MP-4's rich and punchy sound is very popular
in drum and guitar recordings.
Features & Specifications:
300 ohm Mic input impedance & 600 ohm on balanced out.
Gain: continuously variable from +22db to +60db.
-20 db pad SW, +48v phantom power switch, faze switch.
Passive 2-state 12db/oct high-pass filters 75Hz, 160Hz &
off.
Frequency response 10Hz-40kHz +/- 0.4 db/120khz-2db!
Maximum output level: +27dbm on balanced out with 600 ohm
load.
Minimum signal path design (for maximum signal transparency).
Only 2 dual-op amps per channel (balanced in to balanced
out). |
